Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

    • Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds
    • Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds
  • Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Creative
    Certification: CE
    Model Number: DCB360

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 2000-20000 per set
    Packaging Details: Two woodencase pallets,one pallet (2.1×1.0×1.4 m³),other pallet (2.25×0.9×1.3m³)
    Delivery Time: 10-20 work days
    Payment Terms: TT
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Material: Iron Application: Notebook Double Ring Closer
    OEM: Accept OEM Touch Screen: Siemens
    Converyor: Have One Conveyor Wire Diameter: 1/4 - 1 1/4
    Type: Notebook Wire Binding Machine Guarantee: 12 Months
    Services: Overseas Training And Install Available Bind Tool: No Need Change Bind Tool,save Time
    Book Feeding Mode: Manual Working Speed: 800-1500 Books / Hour
    Handing Of Double Wire: Automatic Cut ,closing And Conveying Max Binding Width: 360mm
    Min Binding Width: 70mm Machine Net Weight: 300kg

    Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

    Notebook double ring closer



    Description :

    Notebook double ring closer DCB360 is a machine close wire o or double wire notebooks,easy adjust and operate.No need change mould,could close double wire size from 1/4 - 1 1/4.



    Mainly used for print factory which produce notebook or desk calendar.Production bind edge size <360mm,all could be close by this machine.



    Some customer want notebook with separate small loop wire close,also could be done by this machine.Touch screen there has many function,like wire separate,loops caculate,wire pitch change,and so on.


    Size Pitch Notebook binding thickness (mm) wire o diameter(mm)
    1/4 3:1 4.9 6.4
    5/16 3:1 6.3 7.9
    3/8 3:1 7.9 9.5
    7/16 3:1 9.3 11.1
    1/2 3:1 10.9 12.7
    9/16 3:1 12.2 14.3
    5/8 2:1 13.4 15.9
    3/4 2:1 16.6 19.1
    7/8 2:1 19.7 22.2
    1 2:1 22.9 25.4
    1 1/4 2:1 27.8 31.8




    double ring closer DCB360 Applcation:

    For  wire o notebooks and desk calnedar wire o or double wire closer

    Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

    Notebook wire o binding Video

    https://www.youtube.com/watch?v=zzBJIpvy-Zc (in Thailand print factory)

    https://www.youtube.com/watch?v=XqJXRyjbXr8&t=5s (chinese print factory)



    Print facotry if mainly do notebooks wire bind,i think this wire bind machine is most sutible for you,easy adjust,stable,no mould need change mould,so it also save your cost.



    Technical data:

    Wire o  bind Speed 1000 books per hour
    Air pressure 5 - 8 kgf
    Wire diameter available  1/4 - 1 1/4
    Max bind side length 360mm
    Electric power 1ph 220v 50-60hz (other voltage on request)
    Net weight 450KG



    Advantages:

    1.Easy adjust,control by plc.

    2.Change wire size easy,no need change moulds.

    3.Could close wire o notebook (first page and background page differ with inner paper)

    4.Wide range use for wire o noteboks,could handle almost notebook bind edge size below 360mm

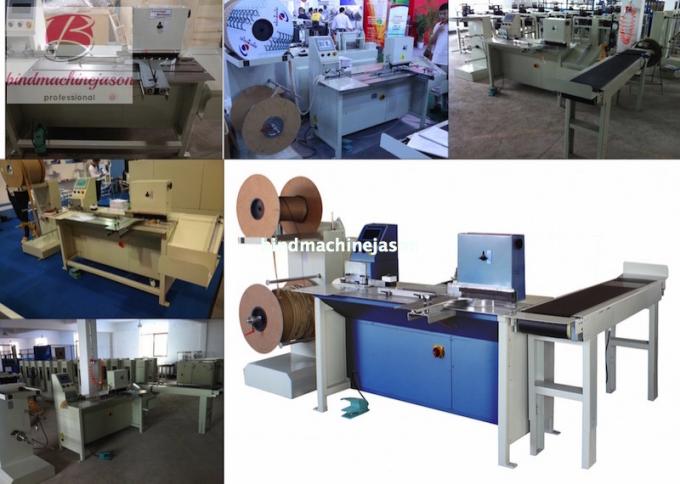

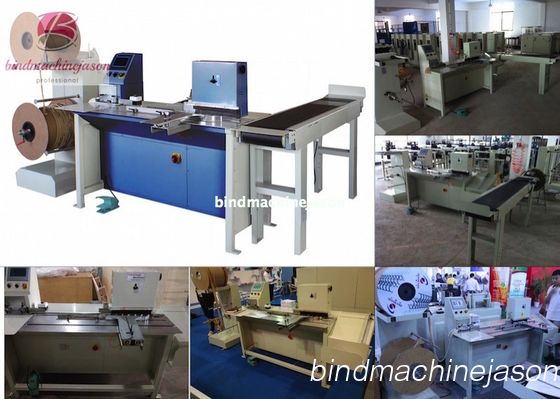

    Addional pictures of machine

    notebook wire binding machine DCB360



    Tool box for adjust wire size from 1/4 - 1 1/4

    Notebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

    •

    • Electrical picture,we use Schneider electronica,and touch screen we use Siemens.

    •

      Notebook double ring closer DCB360 (1/4 - 1 1/4 )without mouldsNotebook double ring closer DCB360 (1/4 - 1 1/4 )without moulds

      One year Guarantee of this machine,if you purchased and get some part wrong,could be repalce new to you,is free,you just need pay courier fee yourself.

    •

    • Our 360 double wire binding machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind wires from 1/4" to 1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
