China Automatic Soft Ring Binding Machine SRB300 Provide You New Binding Solutions
商品の詳細:
お支払配送条件:
|
詳細製品概要
| タイプ: | ソフトリングバインダー | 特徴: | 送り、打ち抜き、リング挿入、溶接、切断の5工程 |
|---|---|---|---|
| 結合の範囲: | 綴じ端：72～300mm（A7～A4冊子） | 穴: | 3:1ピッチ |
| 本の厚さ: | 最大12.5mm | 材料: | LDPE |
| 作業速度: | 800本/時間 | 電力: | 3ph、380v |
| 圧縮空気: | 5～8kgf | 関数: | ソフトリングノートプロデュース |
China Automatic Soft Ring Binding Machine SRB300 Provide You New Binding Solutions

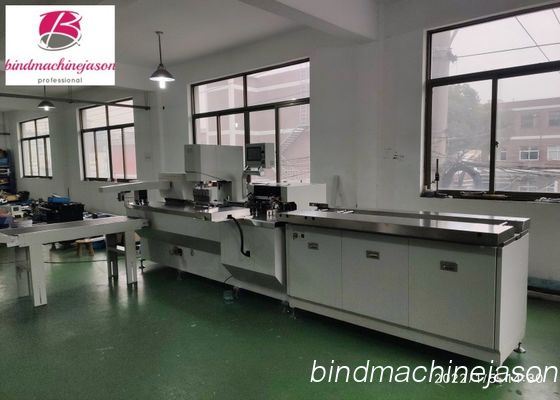

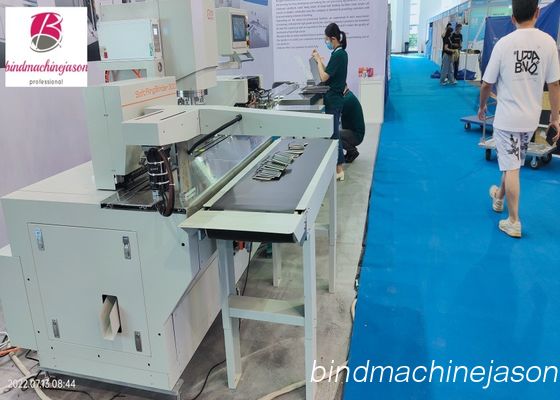

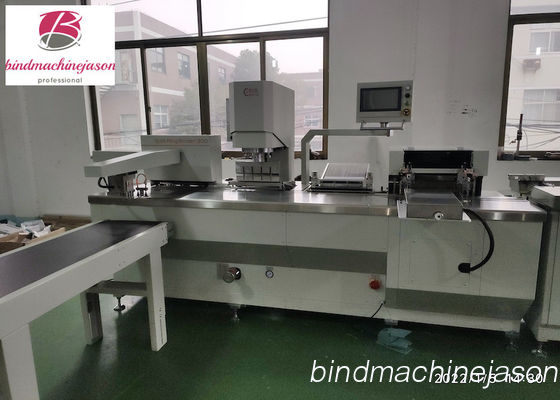

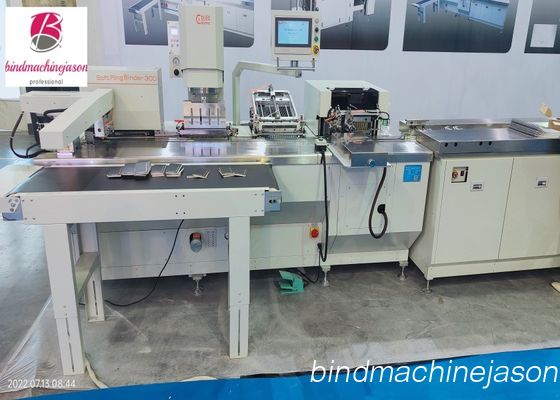

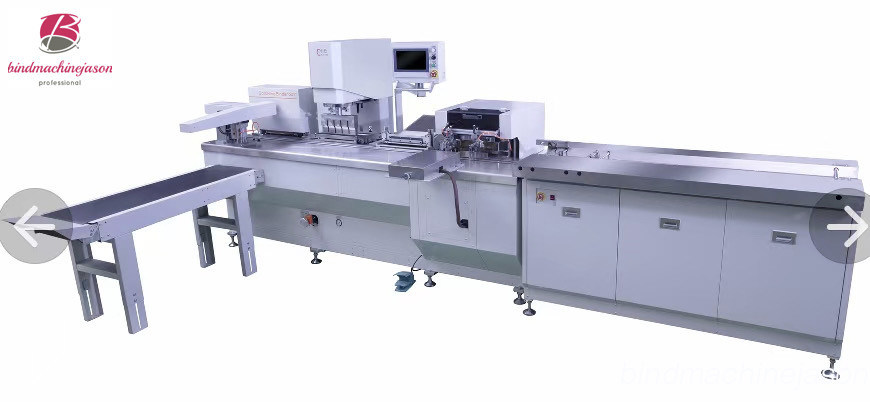

SRB300 soft ring binder is the world’s first commercial soft ring special binding machine design by Ningbo Creative . Machine suitable for the mass production and perfect to handle soft ring book with punching and binding inline .
Combined with many original patented technologies of our company ,it realizes the efficient and perfect solution for soft ring binding products .

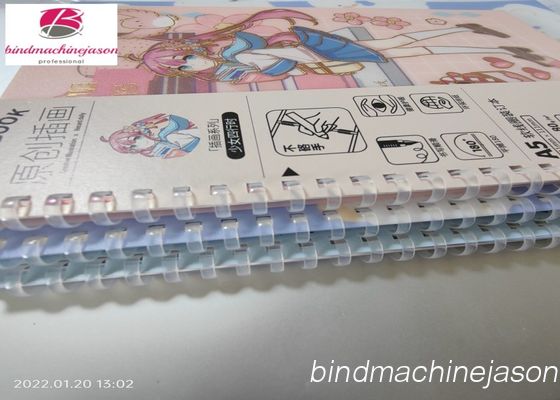

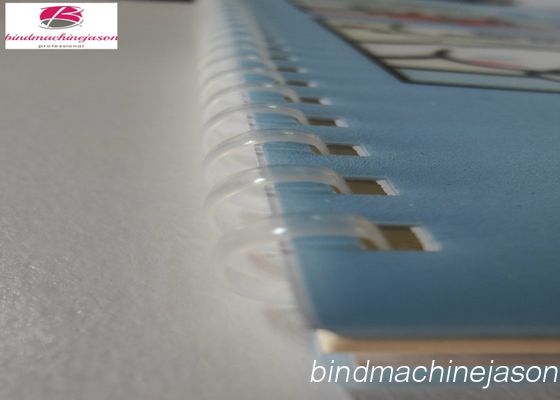

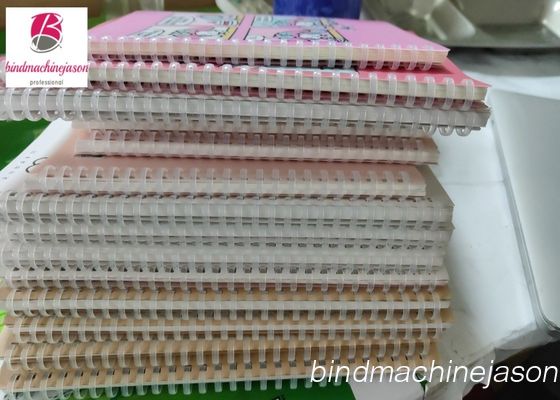

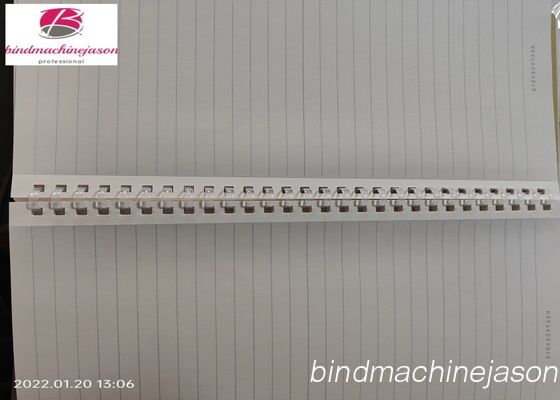

What is soft ring book
You can check Kokuyo soft ring book and it will help you know more clearly .To be simple understand ,it is very soft material with LDPE ,and with differ color ,it can be high level productions used for Childen book or other Creative book design for office person .
Soft ring size
| Type | Size | Pitch | Binding thickness | Hole | Pages for binding |
| 05 | 5/16 | 3:1 | 5 | 4x4 | 40 pages |
| 06 | 3/8 | 3:1 | 6.5 | 4x4 | 50 pages |
| 07 | 7/16 | 3:1 | 8 | 4x4 | 60 pages |
| 08 | 1/2 | 3:1 | 9.6 | 4x4 | 80 pages |
| 09 | 9/16 | 3:1 | 11 | 4x4 | 100 pages |
| 10 | 5/8 | 3:1 | 12.5 | 4x4 | 120 pages |
(Machine now only could handle 3:1 pitch hole ,and size from min 5/16 to max 5/8 , soft ring book max 12.5mm )
Technical data :
| Feature | Feeding,punching ,inserting ring ,welding ,cutting 5 procedures |
| Binding range | Binding edge : 72-300mm (A7-A4 booklet ) |
| Ring size | Type 05-10 ( size:5/16 - 5/8 ) |
| Pitch | ISO 3:1 |
| Speed | Up to 1200 books/hour |
| Dimension | 6m x1.6m x1.7 m |
| Weight | 2400Kg |
| Electric power | 3ph,380v,10kw |
| Compressed air | 5-8 kgf |
Advantages :
1 .Material use ldpe with high elastic ,high toughness . It give good tactile impression when opened book and your hand touched soft ring .
2.No sharp corner in the end of soft ring ,no injury to hands ,safe for customers ,especially for the children .
3.Soft ring book easy for packing ,even coil is deformed ,it can quickly return to original shape , which is convenient for storage and not easy to entangled .
4.The appearance is novel and fashionable and the rich colors for selection ,which perfectly matches the cover pattern .
Compare traditonal binding method ,wire o ,spiral notebook already lower profit ,but this soft ring book could brings good profit as less competitor .
